summary
This machine is widely used for heating and dehumidifying raw materials and products in pharmaceutical, chemical, food, light industry, and heavy industry.
Principle and characteristics
Most of the hot air circulates inside the box, with high thermal efficiency, energy conservation, and the use of forced ventilation. The box is equipped with adjustable air distribution plates, which ensure even drying of materials, smooth operation of the entire machine, low noise, temperature control, convenient installation and maintenance, and a wide range of applications.
Main technical parameters
| Number |
specifications |
Each drying amount |
Heat dissipation area |
Steam consumption |
Electric heating power |
Fan air volume |
Fan power |
Moisture difference inside the box |
Equipped with baking tray |
Supporting drying truck |
External dimensions Width x Depth x Height (mm) |
| 1 |
CT-0 |
50 | 15 | 15 | 6-9 | 1417 | 1.1 |
±2 |
24 | 1 |
1600x1050x2100 |
| 2 |
CT-I |
100 | 20 | 20 | 15 | 1417 | 1.1 |
±2 |
48 | 2 |
2430x1200x2375 |
| 3 |
CT-II |
200 | 40 | 40 | 30 | 5230 | 1.1 |
±2 |
96 | 4 |
2430x2200x2433 |
| 4 |
CT-III |
300 | 80 | 60 | 45 | 9800 | 2.2 |
±2 |
144 | 6 |
3430x2200x2620 |
| 5 |
CT-IV |
400 | 100 | 80 | 60 | 9800 | 2.2 |
±2 |
192 | 8 |
4380x2200x2620 |
| 6 |
CT-C-O |
50 | 15 | 15 | 6-9 | 4510 | 0.45 |
±2 |
16 | 0 |
1550x1000x2044 |
| 7 |
CT-C-I |
100 | 20 | 20 | 15 | 4510 | 0.45 |
±2 |
48 | 2 |
2300x1200x2300 |
| 8 |
CT-C-II |
200 | 40 | 40 | 30 | 9020 |
0.45x2 |
±2 |
96 | 4 |
2300x2200x2300 |
| 9 |
CT-C-III |
300 | 80 | 60 | 45 | 13530 |
0.45x3 |
±2 |
144 | 6 |
2300x3220x2000 |
| 10 |
CT-C-IV |
400 | 100 | 80 | 60 | 18040 |
0.45x4 |
±2 |
192 | 8 |
4460x2200x2290 |

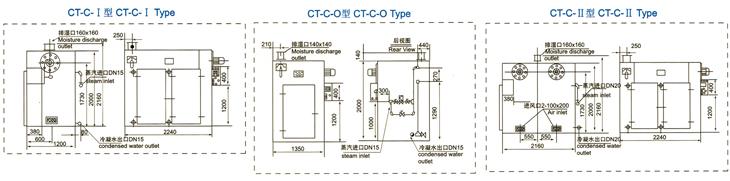

Appearance dimension diagram
